Models a Toggle Latch DD-MPB, a.k.a. a Toggle Switch (ToLDD-MPB). More...
#include <ButtonToSwitch.h>
Public Member Functions | |
| TgglLtchMPBttn (const uint8_t &mpbttnPin, const bool &pulledUp=true, const bool &typeNO=true, const unsigned long int &dbncTimeOrigSett=0, const unsigned long int &strtDelay=0) | |
| Class constructor. | |
 Public Member Functions inherited from LtchMPBttn | |
| LtchMPBttn (const uint8_t &mpbttnPin, const bool &pulledUp=true, const bool &typeNO=true, const unsigned long int &dbncTimeOrigSett=0, const unsigned long int &strtDelay=0) | |
| Class constructor. | |
| virtual bool | begin (const unsigned long int &pollDelayMs=_StdPollDelay) |
| See DbncdMPBttn::begin(const unsigned long int) | |
| void | clrStatus (bool clrIsOn=true) |
| See DbncdMPBttn::clrStatus(bool) | |
| const bool | getIsLatched () const |
| Returns the value of the isLatched attribute flag, indicating the Latched or Unlatched condition of the object. | |
| bool | getTrnOffASAP () |
| Returns the value of the trnOffASAP attribute flag. | |
| const bool | getUnlatchPend () const |
| Returns the value of the "Valid Unlatch Pending" attribute. | |
| const bool | getUnlatchRlsPend () const |
| Returns the value of the "Valid Unlatch Release Pending" attribute. | |
| void | setTrnOffASAP (const bool &newVal) |
| Sets the value of the trnOffASAP attribute. | |
| void | setUnlatchPend (const bool &newVal) |
| Sets the value of the "Valid Unlatch Pending" attribute. | |
| void | setUnlatchRlsPend (const bool &newVal) |
| Sets the value of the "Valid Unlatch Release Pending" attribute. | |
| bool | unlatch () |
| Sets the values of the flags needed to unlatch a latched MPB. | |
| Public Member Functions inherited from DbncdDlydMPBttn | |
| DbncdDlydMPBttn () | |
| Default constructor. | |
| DbncdDlydMPBttn (const uint8_t &mpbttnPin, const bool &pulledUp=true, const bool &typeNO=true, const unsigned long int &dbncTimeOrigSett=0, const unsigned long int &strtDelay=0) | |
| Class constructor. | |
| bool | init (const uint8_t &mpbttnPin, const bool &pulledUp=true, const bool &typeNO=true, const unsigned long int &dbncTimeOrigSett=0, const unsigned long int &strtDelay=0) |
| see DbncdMPBttn::init(const uint8_t, const bool, const bool, const unsigned long int) | |
| void | setStrtDelay (const unsigned long int &newStrtDelay) |
| Sets a new value to the "Start Delay" strtDelay attribute. | |
| Public Member Functions inherited from DbncdMPBttn | |
| DbncdMPBttn () | |
| Default class constructor. | |
| DbncdMPBttn (const uint8_t &mpbttnPin, const bool &pulledUp=true, const bool &typeNO=true, const unsigned long int &dbncTimeOrigSett=0) | |
| Class constructor. | |
| virtual | ~DbncdMPBttn () |
| Default virtual destructor. | |
| void | clrStatus (bool clrIsOn=true) |
| Clears and resets flags, timers and counters modified through the object's signals processing. | |
| void | disable () |
| Disables the input signal processing, ignoring the changes of its values. | |
| void | enable () |
| Enables the input signal processing. | |
| bool | end () |
| Detaches the object from the timer that monitors the input pins, compute and updates the object's status. | |
| const unsigned long int | getCurDbncTime () const |
| Returns the current debounce period time set for the object. | |
| fncPtrType | getFnWhnTrnOff () |
| Returns the function that is set to execute every time the object enters the Off State. | |
| fncPtrType | getFnWhnTrnOn () |
| Returns the function that is set to execute every time the object enters the On State. | |
| const bool | getIsEnabled () const |
| Returns the value of the isEnabled attribute flag, indicating the Enabled or Disabled status of the object. | |
| const bool | getIsOn () const |
| Returns the value of the isOn attribute flag. | |
| const bool | getIsOnDisabled () const |
| Returns the value of the isOnDisabled attribute. | |
| const unsigned long int | getLstPollTime () |
| Returns the time stamp of the last state update for the object. | |
| const uint32_t | getOtptsSttsPkgd () |
| Returns the relevant attribute flags values for the object state encoded as a 32 bits value. | |
| const bool | getOutputsChange () const |
| Returns the value of the outputsChange attribute flag. | |
| const unsigned long int | getPollPeriodMs () |
| Returns the poll period time setting attribute's value. | |
| unsigned long int | getStrtDelay () |
| Returns the current value of strtDelay attribute. | |
| bool | getUpdTmrAttchd () |
| Returns the value of the Attached to the update timer attribute. | |
| bool | init (const uint8_t &mpbttnPin, const bool &pulledUp=true, const bool &typeNO=true, const unsigned long int &dbncTimeOrigSett=0) |
| Initializes an object instantiated by the default constructor. | |
| bool | pause () |
| Pauses the software timer updating the computation of the object's internal flags value (object's state). | |
| void | resetDbncTime () |
| Resets the debounce process time of the object to the value used at instantiation. | |
| void | resetFda () |
| Resets the MPB behavior automaton to it's Initial or Start State | |
| bool | resume () |
| Restarts the software timer updating the calculation of the object internal flags. | |
| bool | setDbncTime (const unsigned long int &newDbncTime) |
| Sets the debounce process time. | |
| void | setFnWhnTrnOffPtr (void(*newFnWhnTrnOff)()) |
| Sets the function that will be called to execute every time the object enters the Off State. | |
| void | setFnWhnTrnOnPtr (void(*newFnWhnTrnOn)()) |
| Sets the function that will be called to execute every time the object enters the On State. | |
| void | setIsOnDisabled (const bool &newIsOnDisabled) |
| Sets the value of the isOnDisabled attribute. | |
| void | setOutputsChange (bool newOutputsChange) |
| Sets the value of the attribute flag indicating if a change took place in any of the output attribute flags (IsOn included). | |
Models a Toggle Latch DD-MPB, a.k.a. a Toggle Switch (ToLDD-MPB).
The Toggle switch keeps the ON state since the moment the signal is stable (debouncing + delay process), and keeps the ON state after the push button is released and until it is pressed once again. So this simulates a simple On-Off switch like the one used to turn on/off a room light or any electric appliance. The included methods lets the designer define the unlatch event as the instant the MPB is started to be pressed for the second time or when the MPB is released from that second press.

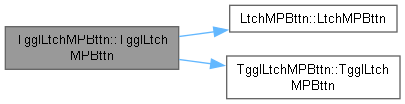

| TgglLtchMPBttn::TgglLtchMPBttn | ( | const uint8_t & | mpbttnPin, |
| const bool & | pulledUp = true, | ||
| const bool & | typeNO = true, | ||
| const unsigned long int & | dbncTimeOrigSett = 0, | ||
| const unsigned long int & | strtDelay = 0 ) |
Class constructor.
For the parameters see DbncdMPBttn(const uint8_t, const bool, const bool, const unsigned long int)
