SevenSegStatic Class Reference

Abstract class that models displays that don't need permanent MCU data updating to keep the data correctly displayed. More...

#include <SevenSegDispHw.h>

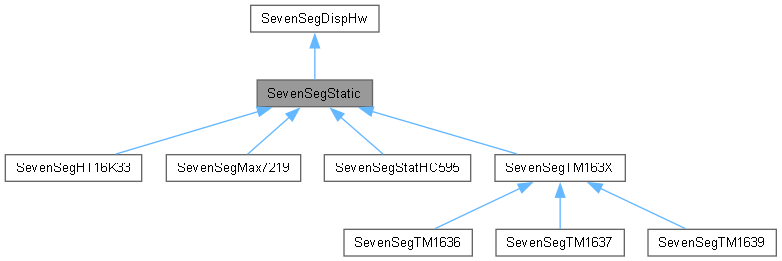

Inheritance diagram for SevenSegStatic:

Collaboration diagram for SevenSegStatic:

Additional Inherited Members
Public Member Functions inherited from SevenSegDispHw
	SevenSegDispHw ()
	Default class constructor.
	SevenSegDispHw (uint8_t *ioPins, uint8_t dspDigits=4, bool commAnode=true, uint8_t dspDigitsQtyMax=0)
	Class constructor.
virtual	~SevenSegDispHw ()
	Class destructor.
virtual bool	begin (uint32_t updtLps=0)
	Sets up the hardware display to work, and starts the display activities.
virtual bool	end ()
	Reverts the begin(uint32_t) actions, stopping the display activities, turning the display off and freeing the resources used by the Seven Segment display hardware object.
virtual uint8_t	getBrghtnssLvl ()
	Returns the current display brightness level setting for the display.
virtual uint8_t	getBrghtnssMaxLvl ()
	Returns the maximum display brightness level setting allowed for the display.
virtual uint8_t	getBrghtnssMinLvl ()
	Returns the minimum display brightness level setting for the display.
bool	getCommAnode ()
	Returns a value indicating if the display module component of the display hardware uses a common anode or a common cathode led wiring.
uint8_t *	getDspBuffPtr ()
	Returns a pointer to the display buffer.
uint8_t	getHwDspDigitsQty ()
	Returns the quantity of digits of the display module.
virtual bool	getIsOn ()
	Returns the state of the display.
uint8_t *	getxcdDspBuffPtr ()
	Returns a pointer to an array holding the contents for the digits/ports available from the display controller but not used for plain digits display.
virtual void	ntfyUpdDsply ()
	Notifies the SevenSegDispHw component object of a change of content available in the display buffer, so that the object proceeds to update the display.
virtual bool	setBrghtnssLvl (const uint8_t &newBrghtnssLvl)
	Sets the brightness level for the display.
virtual bool	setDigitsOrder (uint8_t *newOrderPtr)
	Sets a mapping to relate the display buffer positions to the display port assigned to exhibit it's contents.
void	setDspBuffPtr (uint8_t *newDspBuffPtr)
	Sets the pointer to the Display Buffer memory area.
virtual void	turnOff ()
	Turns the display module off.
virtual void	turnOn ()
	Turns the display module on.
virtual void	turnOn (const uint8_t &newBrghtnssLvl)
	Turns the display module on set at the provided brightness level.
Protected Attributes inherited from SevenSegDispHw
uint8_t	_allLedsOff {}
	Value to set in the display port to set all leds off (a "space"), dependent of _commAnode.
uint8_t	_brghtnssLvl {0}
	Current display brightness level.
uint8_t	_brghtnssLvlMax {0}
	Maximum display brightness level.
uint8_t	_brghtnssLvlMin {0}
	Minimum display brightness level.
uint8_t *	_dspBlankBuffPtr {nullptr}
	Pointer to a display buffer filled with _allLedsOff ("spaces") to use as display buffer while in "Off State".
uint8_t *	_dspBuffPtr {nullptr}
	Pointer to the display buffer, will be provided by the SevenSegDisplays object when it's instantiated.
uint8_t *	_dspBuffPtrBkp {nullptr}
	Pointer to the display buffer, copy of the original _dspBuffPtr to be used as backup.
bool	_isOn {false}
	Current display status: On/Off.
uint8_t *	_xcdDspBuffPtr {nullptr}
	A pointer to a buffer the size of the exceeding digits used to control display specific amenities.
uint8_t	_xcdDspDigitsQty {}
	Number of unused available display ports, its the difference (_dspDigitsQtyMax - _dspDigitsQty), being the size of the array pointed by _xcdDspBuffPtr.

Detailed Description

Abstract class that models displays that don't need permanent MCU data updating to keep the data correctly displayed.

The lack of need of periodic intervention from the MCU implies that the display controller component includes a "display driver" chip (or chipset) that takes care of the display update and refreshing. So this is a base class for Seven Segment display hardware based on different display controller component chips. The MCU sends the data to be displayed and the chip required commands through diverse channels and protocols depending on the specific chip.
The chip then connects to the display module component through their output pins. The hardware developer might decide to implement the display module component wiring according to the project requirements, but all the chips modeled by this class and it's subclasses share the same characteristics:

• They provide 8 pins for the seven segments + DP ports.

• They provide 1 pin per digit/port supported by the specific chip.


Note

NONE of the driver chips controlling the displays modeled by the SevenSegStatic subclasses includes COLONS, ICONS or any other amenity some display module component includes, this class and it's subclasses model generic use chip drivers for seven segment display modules. For these chips the activation of those colons and/or icons is provided by the use of some of the existing described chip pins in a display module proprietary exclusive way, and are described in those display modules' datasheet. Some of those mechanisms are:

• Have less display ports than the maximum supported by the chip, and use one or more segments of the exceeding ports wired to the colon/s or icon/s of the display.

• Use an external source to activate the colon/s or icon/s independently from the driving chip.

• Wire one or more of the visible display ports DP segments to the colon/s or icon/s of the display.


Warning

Using displays that implement the colon/s and/or icon/s through the DP segments of the active ports make the display unfit to display decimal non integer values, as no DP might be used. Verify the display module characteristics to setup the corresponding class with the right parameters.
